Product

Cylinder

Mini Cylinder

MI

Cylinder - Mini Cylinder

咨询

下载

产品介绍

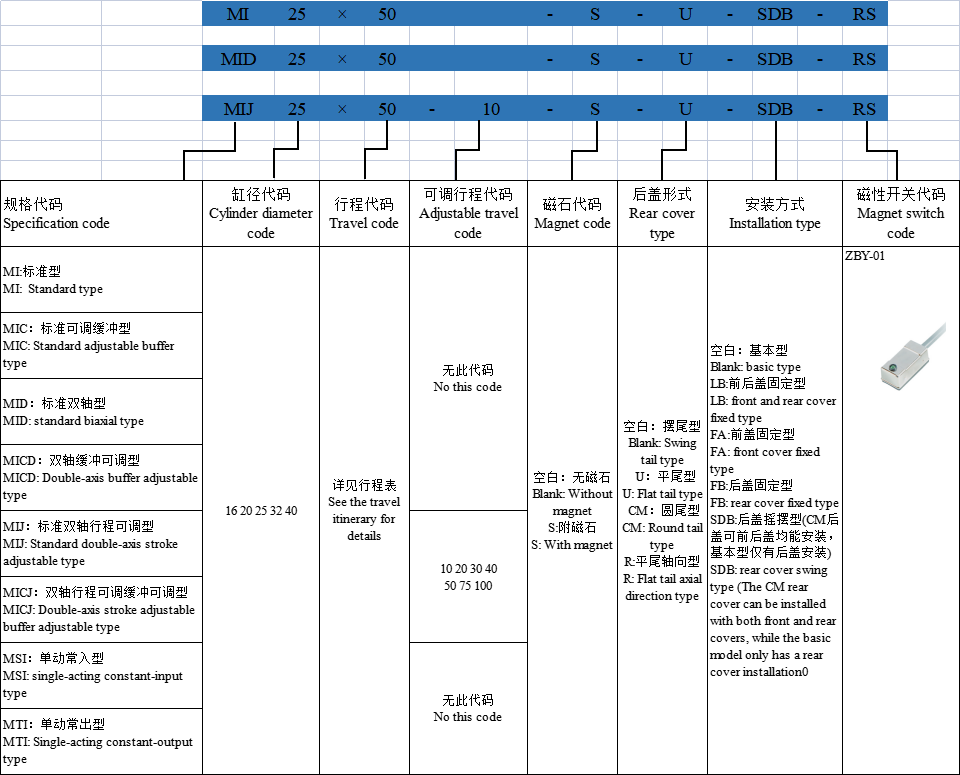

订购码

技术参数

Model		8	10	12	16	20	25	32	40
Action mode	MI/MID/MIJ	Double-action
	MSI/MTI	Single-action
	MIC/MICD/MICJ	/			Double-action buffer type
Working medium		Air (filtered by a filter screen over 40μm)
Working pressure range	Double-action	0.15~1.0MPa
	Single-action	0.2~1.0MPa
Maximum pressure resistance		1.5MPa
Working temperature		-10~70℃
Work speed range		Single-action type: 50~800 Double-action type: 30~800
Buffer type		MI/MID/MIJ/MSI/MTI: Cushion buffer MIC/MICD/MICJ: Adjustable air buffer
Travel tolerance		Less than 150+1.0 and more than 150+1.5
Connection pipe diameter		M5×0.8				1/8	1/8	1/8	1/4

Schedule

Cylinder diameter		Travel	Maximum travel	Allowable travel
8		10, 20, 30, 40, 50, 75, 100, 125, 150	150	200
10		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200	200	200
12		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250	250	500
16		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500	500	600
20		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500	500	800
25		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500	500	800
32		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500	500	800
40		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500	500	800
MSI MTI	8 10 12	10, 20, 30, 40, 50	50	50
	16	10, 20, 30, 40, 50, 75, 100	100	100
	20 25 32 40	10, 20, 30, 40, 50, 75, 100, 125, 150	150	150
