Home

Product

Cylinder

Mini Cylinder

MAL

Cylinder - Mini Cylinder

Product features:
1. The cylinder piston seal adopts a sealing ring with a two-way sealing structure, which has a compact structure;
2. The rear cover has a variety of installation types to choose from;
3. The front and rear covers are connected with the cylinder barrel by thread, which is maintainable.

Online

Download

Consult

+86-158-8818-5363

Introduction

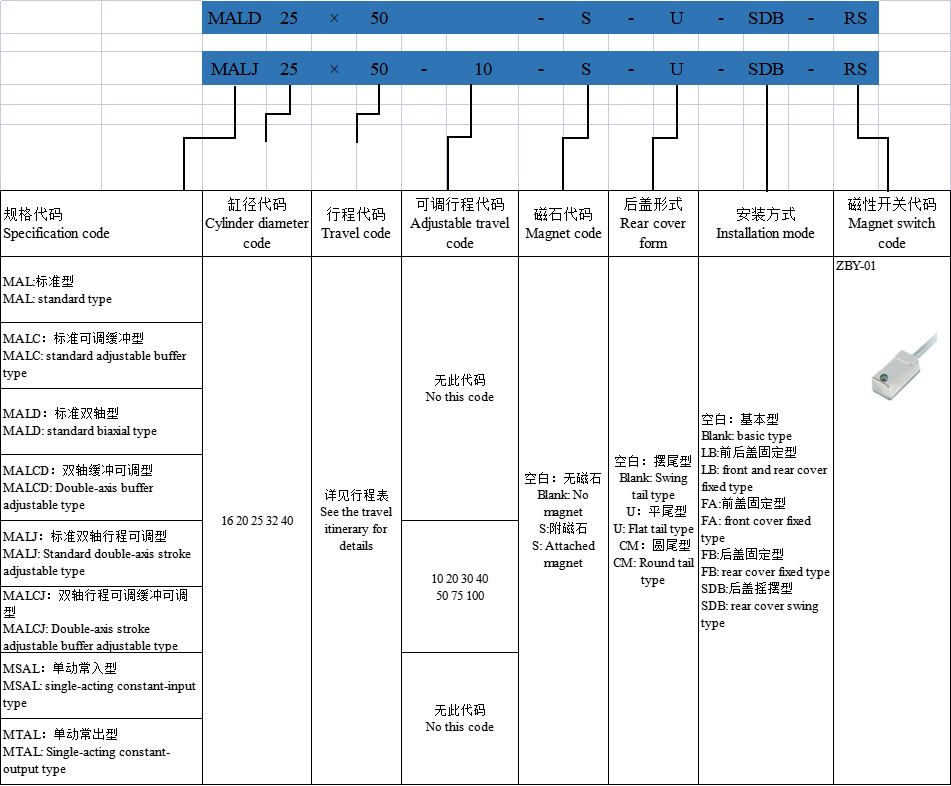

Order Code

Parameter

Product features:

1. The cylinder piston seal adopts a sealing ring with a two-way sealing structure, which has a compact structure;

2. The rear cover has a variety of installation types to choose from;

3. The front and rear covers are connected with the cylinder barrel by thread, which is maintainable.

Cylinder diameter		16	20	25	32	40
Action mode	MAL/MALD/MALJ	Double action type
	MSAL/MTAL	Single action type
	MALC/MALCD/MALCJ	Double action buffer type
Working medium		Air (filtered by a filter screen over 40μm)
Use pressure range	Double action type	0.15~1.0MPa
	Single action type	0.2~1.0MPa
Maximum pressure resistance		1.5MPa
Working temperature		-10~70℃
Use speed range		Single action type: 50~800; double action type: 30~800
Buffer type		MAL/MALD/MALJ/MSAL/MTAL: Buffer with a cushion MALC/MALCD/MALCJ: Air-adjustable buffer
Travel tolerance		Less than 150+1.0 Greater than 150+1.5
Connection pipe diameter		M5×0.8	1/8	1/8	1/8	1/4
