Product Feature:
1、Built-in 15mm linear guide rail, stable operation, no stalling;
2、Optional stepper motor or servo motor, motor connection block can be customized;
3、The sliding screw design at the bottom is flexible and convenient to install;
4、Sliding M4/M5 limit switch mounting nuts on both sides;

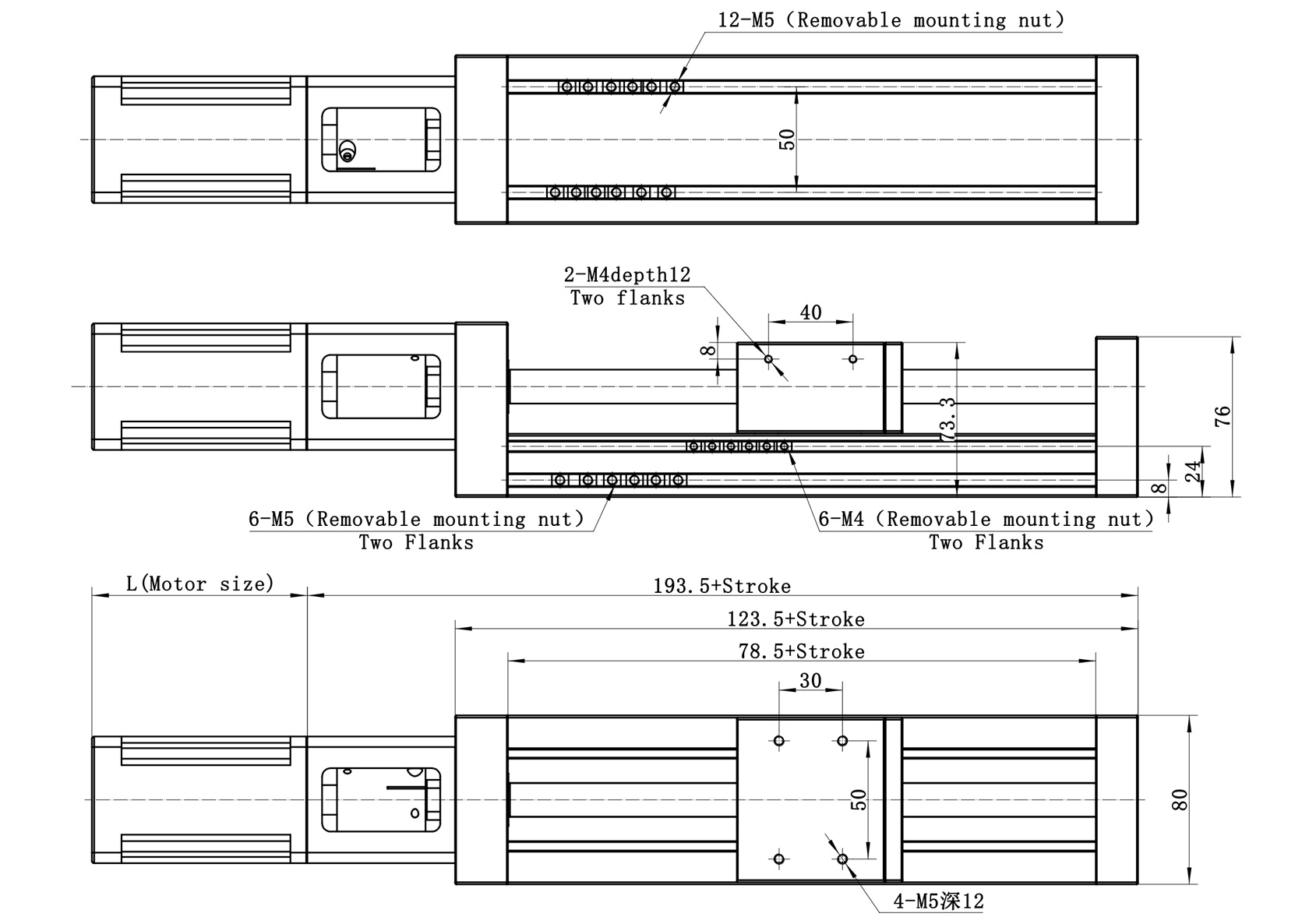

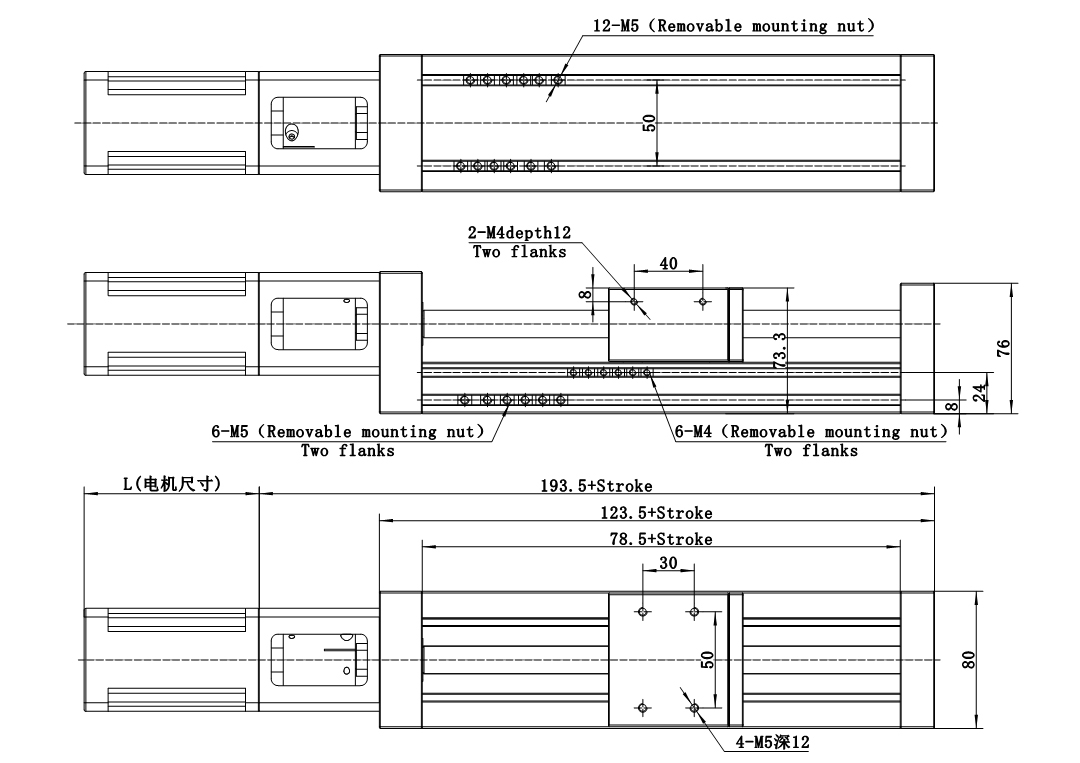

Model No.:ZSHTSingle axis rail ball screw slide table
Lead Screw:1605 Lead:5mm
Max. Load:Level 20KG、Vertical 10KG
Positional Accuracy:0.05mm
Standard Stroke:100/200/300/400/500/600/700/800/900/1000m
