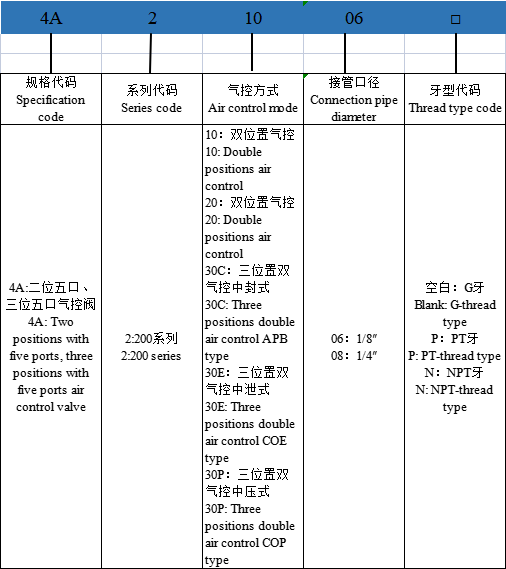

| Model | 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 |
| Working medium | Air (filtered by a filter screen over 40μm) |
| Action mode | Extrernal air control type |
| Connection pipe diameter | Air inflow = Air outflow = Air exhaust =G1/8 | Air inflow = Air outflow = G1/4 Air exhaust =G1/8 |
| Effective sectional area | 14mm²（Cv=0.78） | 12mm²（Cv=0.67） | 16mm²（Cv=0.89） | 12mm²（Cv=0.67） |
| Position number | Two positions with five ports | Three positions with five ports | Two positions with five ports | Three positions with five ports |
| Working pressure range | 0.15~0.8MPa |
| Ensure pressure resistance | 1.2MPa |
| Working temperature | -10~70℃ |
| Body material | Aluminium alloy |
| Maximum action frequency | Five times/sec |
