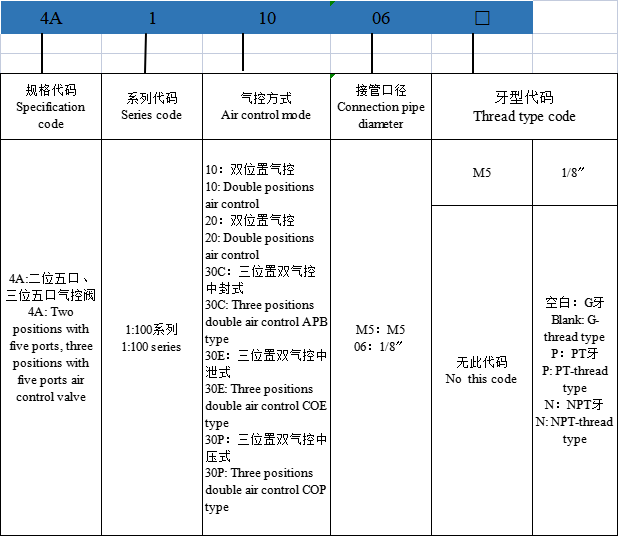

| Model | 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 |
| Working medium | Air (filtered by a filter screen over 40μm) |
| Action mode | Extrernal air control type |
| Connection pipe diameter | Air inflow = Air outflow = Air exhaust =M5×0.8 | Air inflow = Air outflow = Air exhaust =G1/8 |
| Effective sectional area | 10mm²（Cv=0.56） | 7mm²（Cv=0.4） | 12mm²（Cv=0.67） | 9mm²（Cv=0.5） |
| Position number | Two positions with five ports | Three positions with five ports | Two positions with five ports | Three positions with five ports |
| Working pressure range | 0.15~0.8MPa |
| Ensure pressure resistance | 1.2MPa |
| Working temperature | -10~70℃ |
| Body material | Aluminium alloy |
| Maximum action frequency | Five times/sec |
