AF、BF Filter

Air supply element - A-series

Product features
1. AF series has compact structure and installation space is small;
2. AF and BF series have low pressure loss and high water separation effciency;
3. BF series waer cup has high strengh plastic protective cover, safe and reliable for using.

Online

Download

Consult

+86-158-8818-5363

Introduction

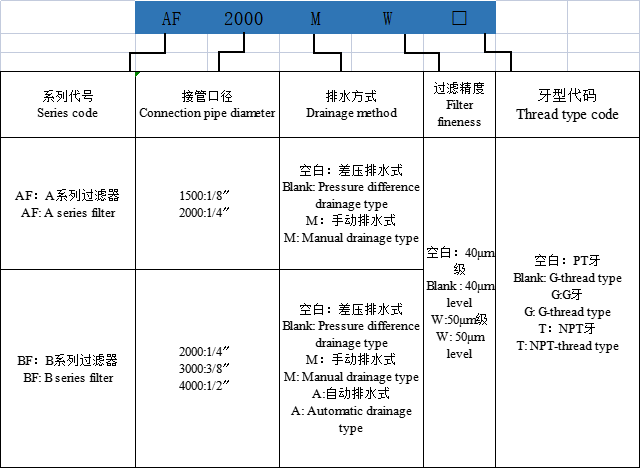

Order Code

Parameter

Product features：

1. AF series has compact structure and installation space is small;

2. AF and BF series have low pressure loss and high water separation effciency;

3. BF series waer cup has high strengh plastic protective cover, safe and reliable for using.

Model	AF1500	AF2000	BF2000	BF3000	BF4000
Working medium	Air
Connection pipe diameter	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Precision of filter element	40μm or 5μm
Volatage regulating range	Automatic and pressure difference drainage type: 0.15~0.9MPa ; Manual drainage type: 0.05~0.9MPa
Maximum working pressure	1.0MPa
Ensure pressure resistance	1.5MPa
Working temperature range	-5~70℃
Capacity of filter cup	15CC		60CC
