AFC、BFC Two-devices Combination

Air supply element - A-series

Product features
1. Compact structure and convenient installation;
2. Can prevent the setting pressure changing due to external factors;
3. Low pressure loss and hight water separation effciency.
4. Transparent structure, allow to visual the amount of oil dripping.

咨询

下载

立刻咨询

158-8818-5363

产品介绍

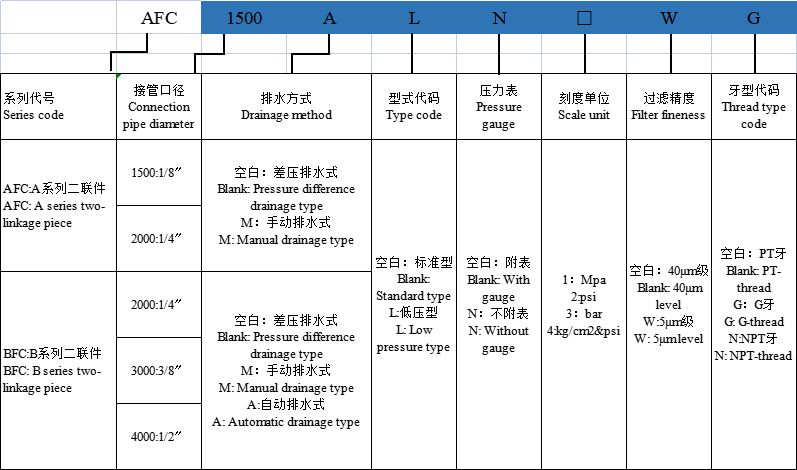

订购码

技术参数

Product features：

1. Compact structure and convenient installation;

2. Can prevent the setting pressure changing due to external factors;

3. Low pressure loss and hight water separation effciency.

4. Transparent structure, allow to visual the amount of oil dripping.

Model		AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Working medium		Air
Connection pipe diameter		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Precision of filter element		40μm or 5μm
Volatage regulating range		Automatic and pressure difference drainage type: 0.15~0.9MPa ; Manual drainage type: 0.05~0.9MPa
Maximum working pressure		1.0MPa
Ensure pressure resistance		1.5MPa
Working temperature range		-5~70℃
Capacity of filter cup		15CC		60CC
Capacity of oil feeding cup		25CC		90CC
Recommended grease		ISO VG32 or equally grease
Compoents	Pressure regulating valve	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	Oil feeder	AL1500	AL2000	BL2000	BL3000	BL4000
