AFR、BFR Filter & Regulator

Air supply element - A-series

Product features
1. Compact structure and convenient installation;
2. Can prevent the setting pressure changing due to external factors;
3. Low pressure loss and hight water separation effciency.

咨询

下载

立刻咨询

158-8818-5363

产品介绍

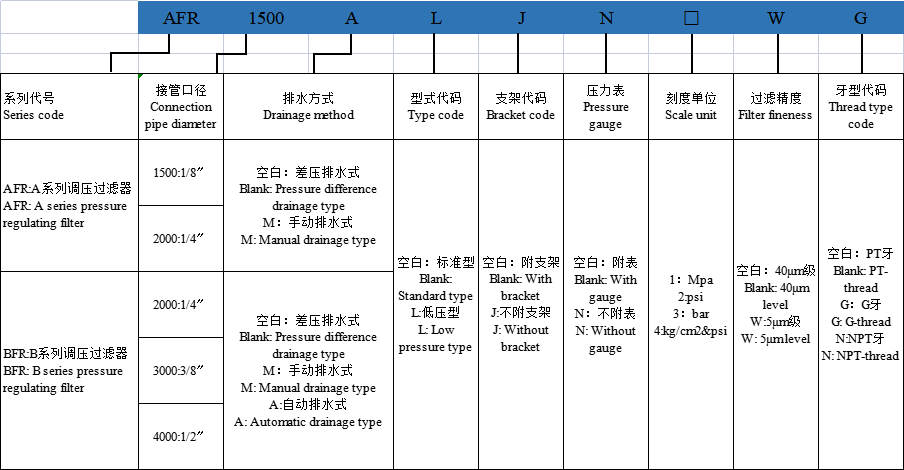

订购码

技术参数

Product features：

1. Compact structure and convenient installation;

2. Can prevent the setting pressure changing due to external factors;

3. Low pressure loss and hight water separation effciency.

Model	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Working medium	Air
Connection pipe diameter	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Precision of filter element	40μm or 5μm
Volatage regulating range	Automatic and pressure difference drainage type: 0.15~0.9MPa ; Manual drainage type: 0.05~0.9MPa
Maximum working pressure	1.0MPa
Ensure pressure resistance	1.5MPa
Working temperature range	-5~70℃
Capacity of filter cup	15CC		60CC
