Product

3V/3A

3A300

Control component - 3V/3A

Online

Download

Introduction

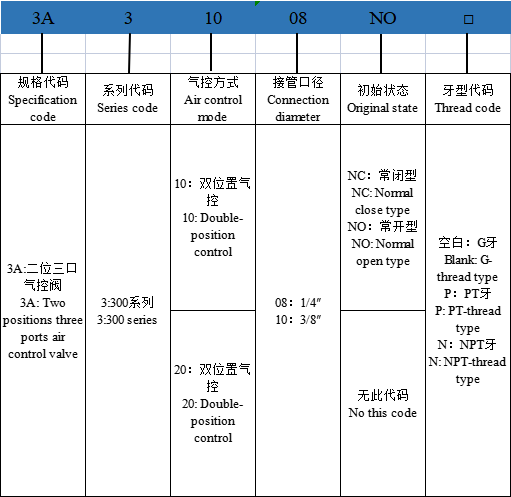

Order Code

Parameter


Model	3A310-08	3A320-08	3A310-10	3A320-10
Working medium	Air(passing through 40 μm or more filter screen)
Action mode	External air control
Connection pipe diameter	Air inflow = Air outflow = Air exhaust = G1/4		Air inflow = Air outflow = G3/8 Air exhaust = G1/4
Effective sectional area	25mm²（Cv=1.4）		30mm²（Cv=1.68）
Position number	Two positions with three ports
Working pressure range	0.15~0.8MPa
Ensure pressure resistance	1.2MPa
Working temperature	-10~70℃
Material of body	Aluminium alloy
Maximum action frequency	Five times/sec
