Product

3V/3A

3A100

Control component - 3V/3A

Online

Download

Introduction

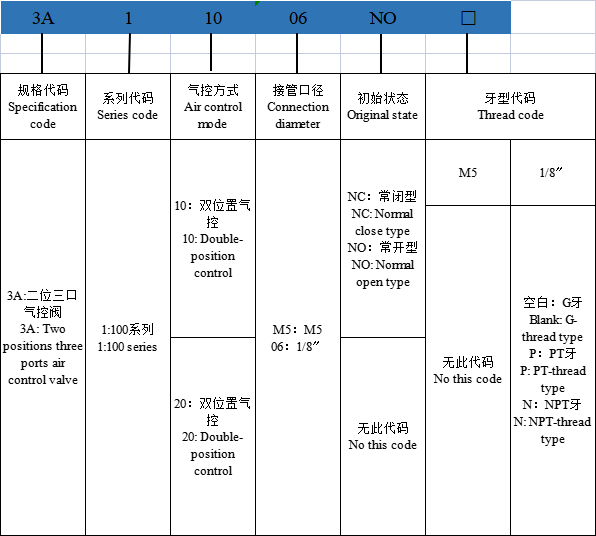

Order Code

Parameter


Model	3A110-M5	3A120-M5	3A110-06	3A120-06
Working medium	Air(passing through 40 μm or more filter screen)
Action mode	External air control
Connection pipe diameter	Air inflow = Air outflow = Air exhaust =M5×0.8		Air inflow = Air outflow = Air exhaust=G1/8
Effective sectional area	10mm²（Cv=0.56）		12mm²（Cv=0.67）
Position number	Two positions with three ports
Working pressure range	0.15~0.8MPa
Ensure pressure resistance	1.2MPa
Working temperature	-10~70℃
Material of body	Aluminium alloy
Maximum action frequency	Five times/sec
