Product

3V/3A

3A200

Control component - 3V/3A

咨询

下载

产品介绍

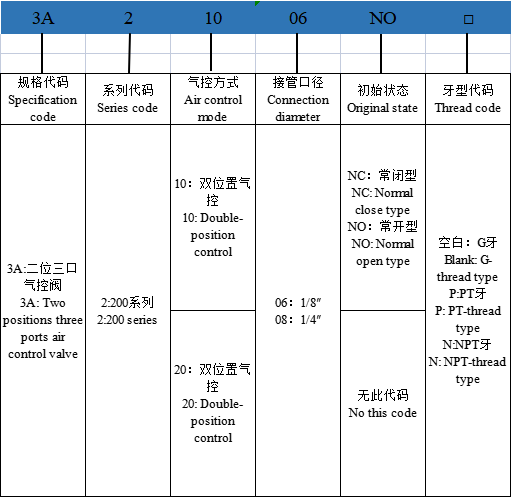

订购码

技术参数


Model	3A210-06	3A220-06	3A210-08	3A220-08
Working medium	Air(passing through 40 μm or more filter screen)
Action mode	External air control
Connection pipe diameter	Air inflow = Air outflow = Air exhaust = G1/8		Air inflow = Air outflow = G1/4 Air exhaust = G1/8
Effective sectional area	14mm²（Cv=0.78）		16mm²（Cv=0.89）
Position number	Two positions with three ports
Working pressure range	0.15~0.8MPa
Ensure pressure resistance	1.2MPa
Working temperature	-10~70℃
Material of body	Aluminium alloy
Maximum action frequency	Five times/sec
